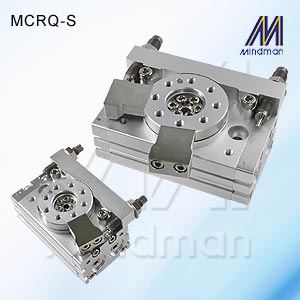

MCRQ-S SERİSİ DÖNER SİLİNDİRLER / Endüstriyel Hidrolik

Acting type

Double acting

Tube I.D. (mm)

φ15, φ20, φ25

Port size

φ15(M5×0.8), φ20, φ25(Rc1/8)

Medium

Air (Non-lube)

Rotation

90°, 180°

Max. operating pressure

1 MPa(※)

Min. operating pressure

0.2 MPa

Ambient temperature

0~＋60℃ (No freezing)

Allowable surge pressure

1.5 MPa

Cushion

Shock absorber

Shock absorber type

φ15 (PN0806), φ20 (PN1008), φ25 (PN1415)

Angle adjustment range

Each rotation end ± 3º

Weight

90°: 0.67, 1.55, 2.52 kg
180°: 0.64, 1.48, 2.41 kg

Remark

※ The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber.
