ALL-1 Pompa Elemanı
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

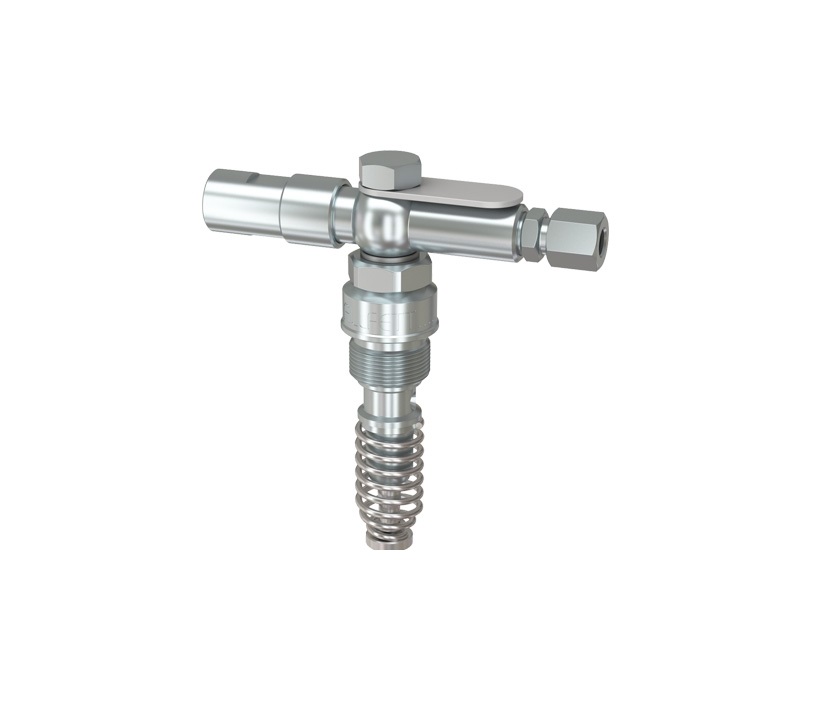

Pump element is designed to be used with ALL-1, ALL-10 and ALL-25 series pumps to deliver the grease to greasing points.
Specific amount of pumps elements can be installed to each pump and they can lubricate points or the delivery of grease can be distributed to several points by distributors. Safety valve is used to adjust the working pressure. |
PRODUCT Nr.
|
DESCRIPTION
|
| 10 00 05 02 | Ø5mm With safety and check valves |
| 10 00 06 02 | Ø6mm With safety and check valves |
| 10 00 07 02 | Ø7mm With safety and check valves |
TECHNICIAL SPECIFICATIONS
WORKING PRINCIPLE
The eccentric axle movement in pump body is pushing the pump elements pistons and return is by spring. This pumping is taking the grease inside reservoir to pump elements via suction hole and pressurized by pistons. By this pressure the grease is lead to lubrication point or distributors and finally to greasing points.
The eccentric axle movement in pump body is pushing the pump elements pistons and return is by spring. This pumping is taking the grease inside reservoir to pump elements via suction hole and pressurized by pistons. By this pressure the grease is lead to lubrication point or distributors and finally to greasing points.
PRODUCTS EQUIPMENT
Partlist of ALL-1 pump element
1. Outletı
2. Safety valve body
3. Pump element body
4. Grease suction area
5. Piston spring
6. Piston
7. Safety valve screw
8. Safety valve adjustment nut
