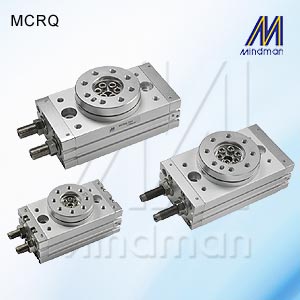

Rotary actuator MCRQ

PRODUCT DESCRIPTION

Acting type

Double acting

Tube I.D. (mm)

φ15, φ20, φ25, φ32, φ40

Port size

φ15: M5×0.8
φ20~φ40: Rc1/8

Medium

Air

Max. operating pressure

adjusting bolt: 1 MPa
shock absorber: 0.6 MPa(※1)

Min. operating pressure

0.1 MPa (※2)

Ambient temperature

0~＋60℃

Allowable surge pressure

1.5 MPa

Cushion

adjusting bolt:φ15, 20,(Rubber bumper), φ25, 32, 40 (Rubber bumper or Air cushion)
shock absorber:φ15, 20 (Shock absorber), φ25, 32, 40 (Shock absorber or Air cushion)

Minimum rotation that will not allow decrease of energy absorption ability

52°~82°

Angle adjustment range

0° to 190°(max.)(※3)

Sensor switch

RT:Reed switch
RTN:NPN
RTP:PNP

Weight

0.6~7.72 kg

Remark

※1. The maximum operating pressure of the actuator is restricted by the maximum allowable
thrust of the shock absorber.
※2. No-load conditions.
※3. Be careful if the rotation angle of a type with internal shock absorber is set below the value in the table below, the piston stroke will be smaller than the shock absorber’s effective
stroke, resulting in decreased energy absorption ability.
